Material
galvanized steel
Surface treatment
epoxy resin powder coating UV durable

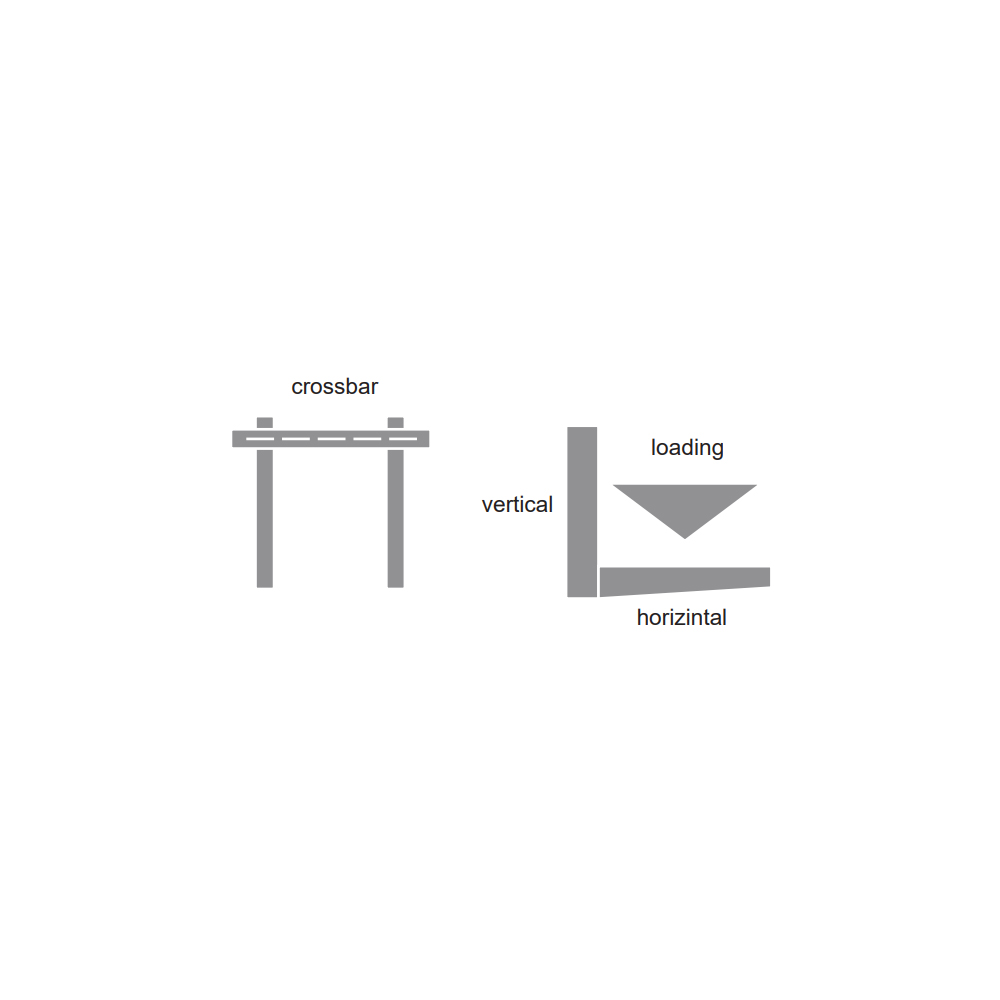

| Code ID | Horizontal strut (mm) | Vertical strut (mm) | Crossbar (mm) | Thickness (mm) | N.W. (kg) | G.W. (kg) | Loading (kg) | Individual box （mm） | Outter carton （mm） |
|---|---|---|---|---|---|---|---|---|---|
| W010C | 450 | 450 | 800 | 1.5 | 3.8 | 4.8 | 100 | 910*90*72 | 820*170*142 |
| W011C | 500 | 500 | 1000 | 2 | 5.4 | 6.4 | 150 | 117*90*72 | 1185*195*156 |
| W012C | 500 | 500 | 1000 | 2 | 5.8 | 6.8 | 150 | 117*90*72 | 1185*195*156 |
